DISCOVERYOPT HD GEN II 5-30X56 SFIR FFP-Z-MRAD/MOA Diameter:34MM Optics Scopes

DISCOVERYOPT HD GEN II 5-30X56 SFIR FFP-Z-MRAD/MOA Diameter:34MM Optics Scopes

// TAGS
FFP HD HPVO Long Range MOA MRAD Precision Range
$269.99 USD
$0.00 USD $269.99 USD
Save $-269.99 售罄
结账时计算的运费。
scope
// POLICY
Product Guarantee & Shipping Policy

🚀 Time: 10-15 business days for global destinations.

We have facilities in the USA, UK, EU, and China. Your order is dispatched from the facility nearest to you.

Lifetime Warranty: XED, ED, HD, and LHD series products.

3-Year Warranty: HT, HS, WG, MS series and Thermal devices.

Return or exchange within 30 days of delivery if it meets our return criteria.
查看完整详细信息
// TECHNICAL SPECIFICATIONS

HD GEN II 5-30X56

Model Name HD GEN II 5-30X56
Magnification 5-30X
Focal Plane FFP(First)
OBJECTIVE 56MM
Tube Diameter 34MM
Iluminated Red, 6 Brightness Settings
Length 15.0in(380mm)
Weight 38.1 oz(1080g)
Click Value 0.1 MRAD | 0.25 MOA
Turrets and Functions ZERO-STOP
Elevation Adj. Range 33 MRAD | 116 MOA
Windage Adj. Range 17 MRAD | 60 MOA
FOV 25FT(7.6m)~4.0FT(1.2m)/100YDS
Exit Pupil 9.3-1.9MM
Eye Relief 3.5 in(9.0cm)-3.4 in(8.6cm)
Parallax 25-∞ YDS
Recoil Rating .50 BMG
Fog Proof Nitrogen Purged
Waterproof IP67
Battery CR2032
// RETICLE SIMULATOR
Visual Field Preview
Drag the slider to experience how the reticle changes with magnification.
Magnification
5-30X
FFP(First)
ELEVATION ADJ. RANGE
33 MRAD | 116 MOA
MRAD Reticle
FFP · MRAD
--×
-- × MAG
--× — --×
FFP · Reticle
Field of View
--°
Exit Pupil
--mm
Twilight Factor
--
FFP Front Focal Plane: Reticle scales with target — subtensions remain accurate at all magnifications.
Objective
56MM
25-∞ YDS
WINDAGE ADJ. RANGE
17 MRAD | 60 MOA
// MOUNTING ASSISTANT
Ring Height Calculator
Select Firearm Platform and Objective Diameter · The System Automatically Calculates Clearance and Recommends the Optimal Mount Height
// 01 · SELECT RIFLE PLATFORM
// 02 · SELECT OBJECTIVE DIAMETER
// 03 · CLEARANCE RESULT
Scope Center → Bore Axis (estimated)
-- "
Select platform and objective
--
// 04 · RING RECOMMENDATIONS
// INSTALLATION NOTES
01 Use a torque wrench. Recommended ring screw torque is 15–18 in-lbs to prevent tube damage.
02 Before zeroing, ensure all screws are tightened in a cross pattern for even clamping force.
03 34mm tube requires 34mm rings. Do not mix with 30mm ring models.
MOUNT CALC ONLINE · HD GEN II 5-30X56 TUBE: 34mm · OBJ: 56mm DISCOVERYOPT © 2026

// VIDEO TUTORIALS

Videos

DISCOVERY HD GEN II 5-30x56: AMAZING Value Scope to Nail the Target #optics#precision#shootingrange

In this video, we explore the DISCOVERY HD GEN II 5-30x56 scope—an incredible value for precision shooting. See how it performs on the range!
DISCOVERY HD GEN II 5-30x56: AMAZING Value Scope to Nail the Target #optics#precision#shootingrange
01

DISCOVERY HD GEN II 5-30x56: AMAZING Value Scope to Nail the Target #optics#precision#shootingrange

In this video, we explore the DISCOVERY HD GEN II 5-30x56 scope—an incredible value for precision shooting. See how it performs on the range!

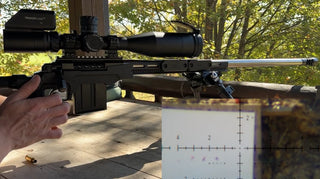

Discoveryopt HD 5-30x56 GENII
02

Discoveryopt HD 5-30x56 GENII

Discoveryopt HD 5-30x56 GEN II: High-performance scope for precision shooting and long-range accuracy.

// WHAT'S IN THE BOX

PACKAGE CONTENTS

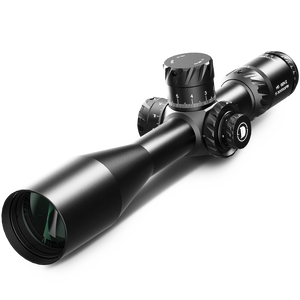

  • Scope

    Scope

    ×1

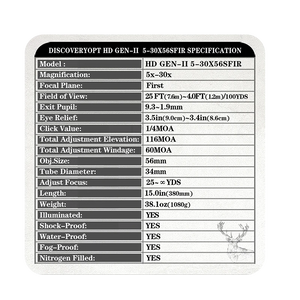

  • Spec Card

    Spec Card

    ×1

  • User Manual

    User Manual

    ×1

  • Scope Sunshade

    Scope Sunshade

    ×1

  • Lens Cleaning Cloth

    Lens Cleaning Cloth

    ×1

  • No Scope Rings

    No Scope Rings

    ×1

  • Warranty Card &QC Card

    Warranty Card &QC Card

    ×1

  • Lens Cap

    Lens Cap

    ×1
