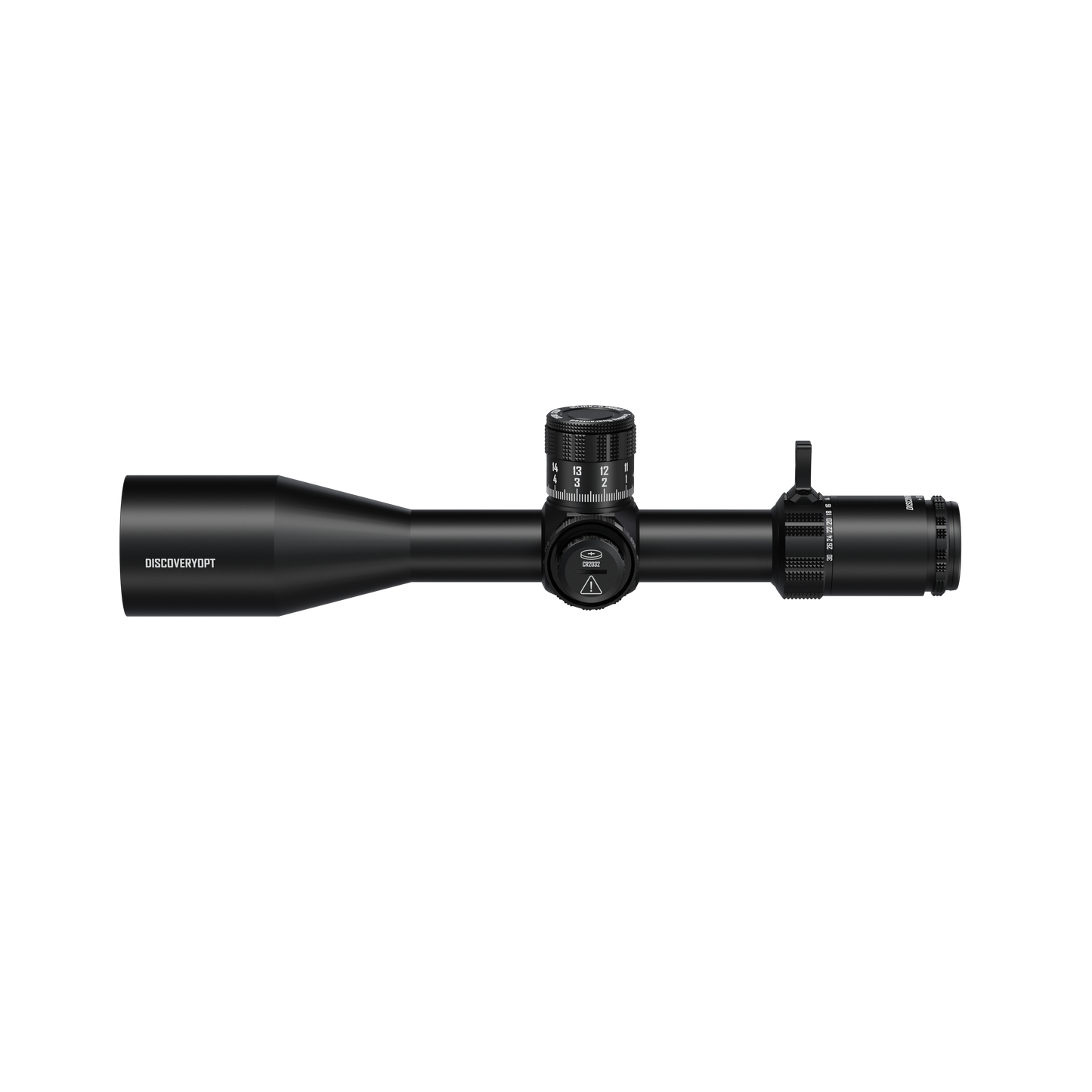

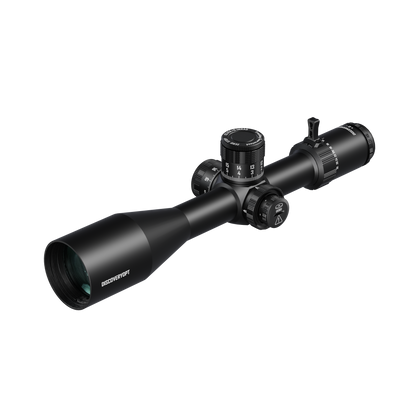

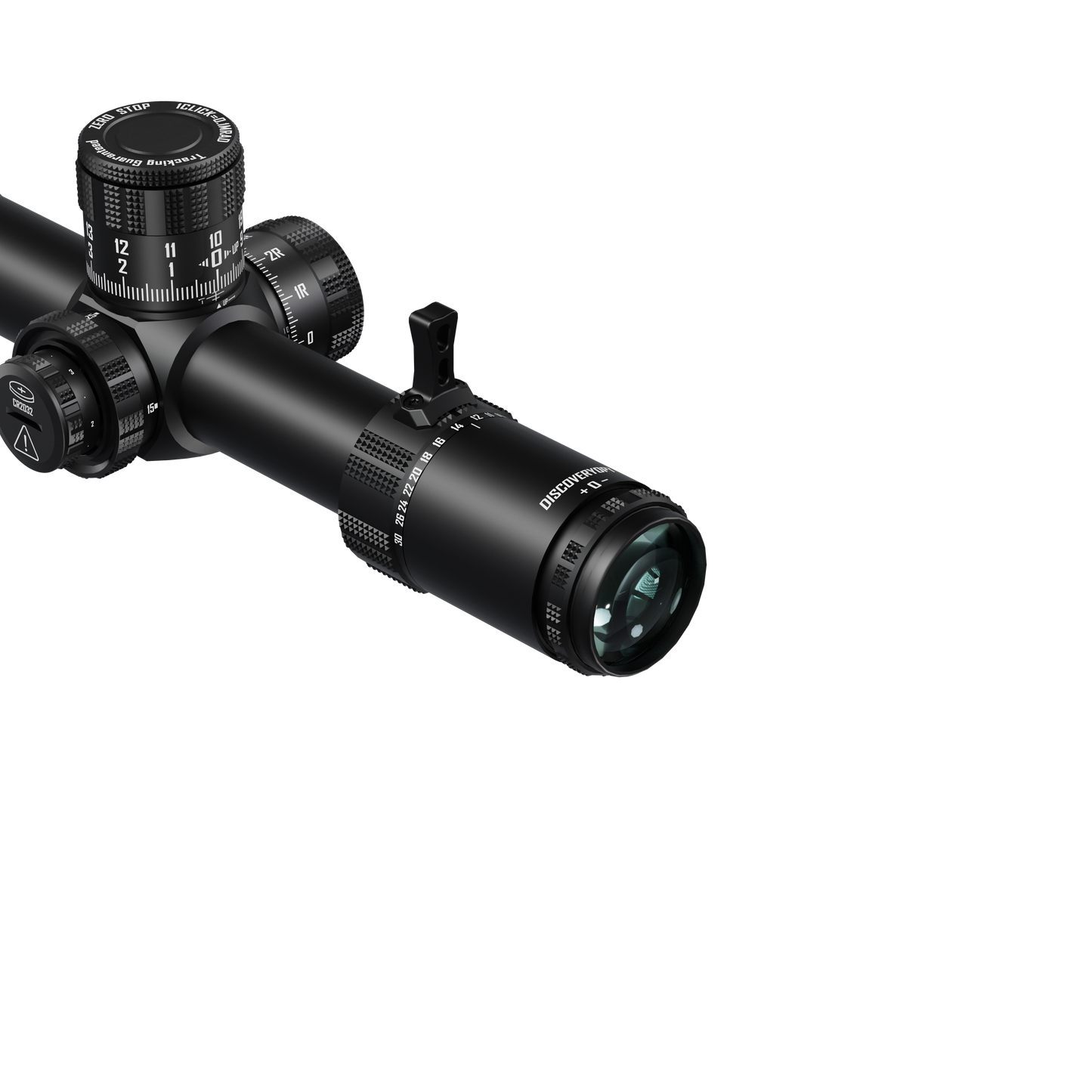

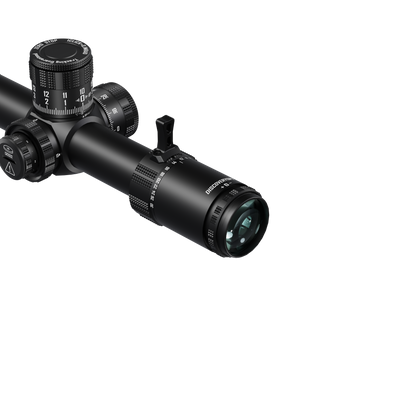

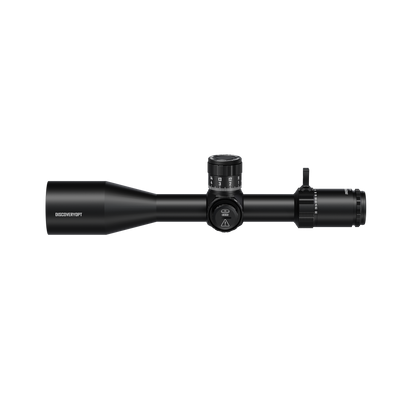

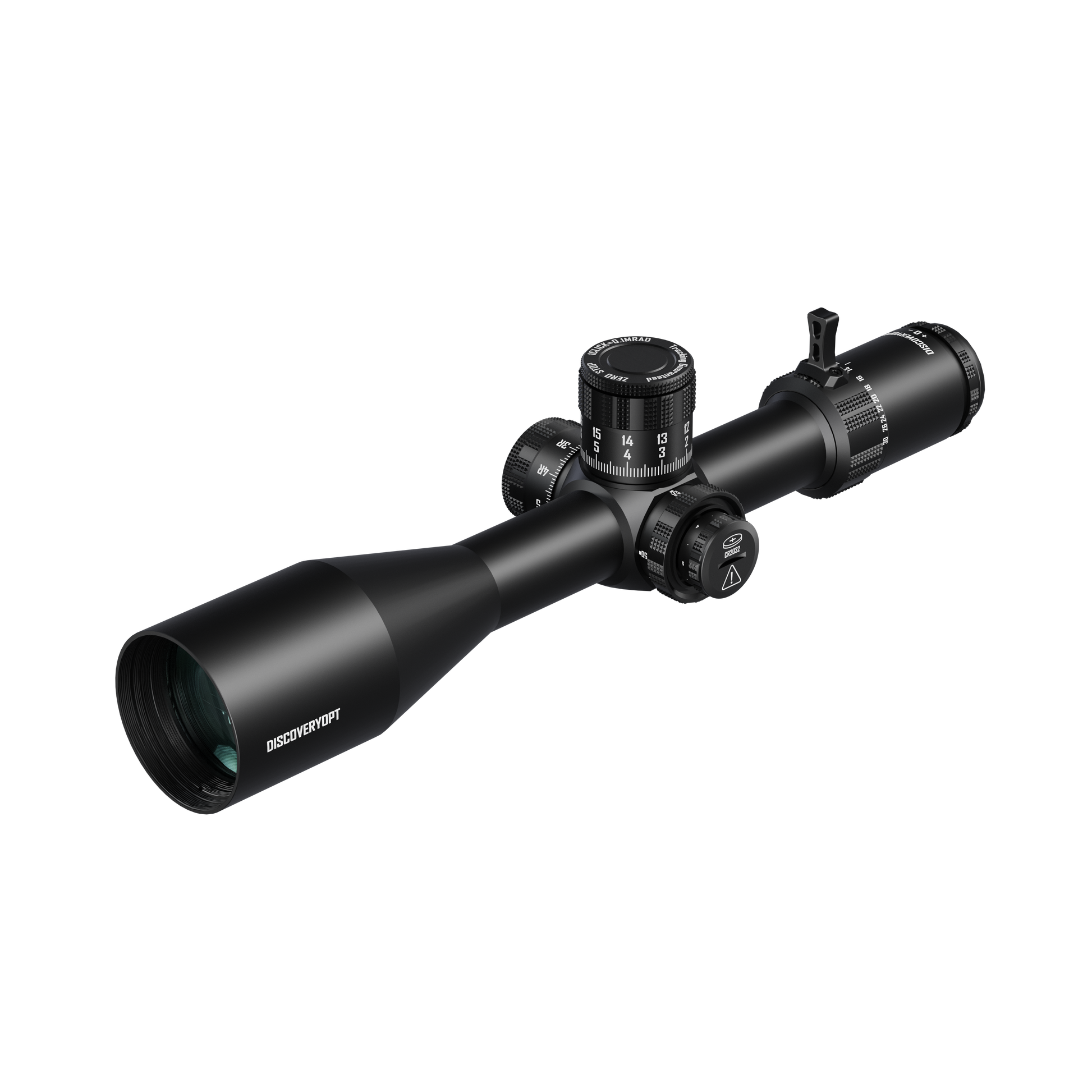

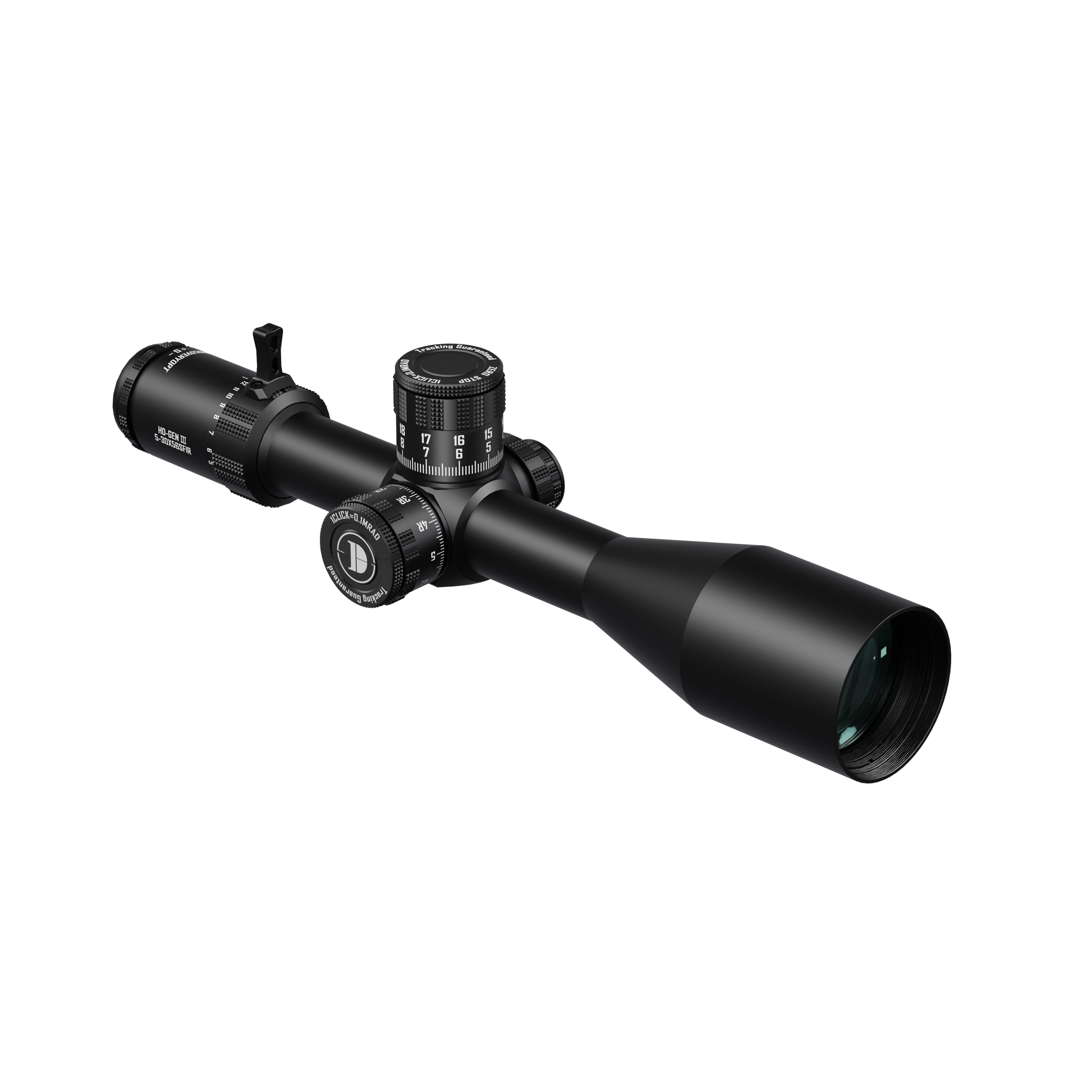

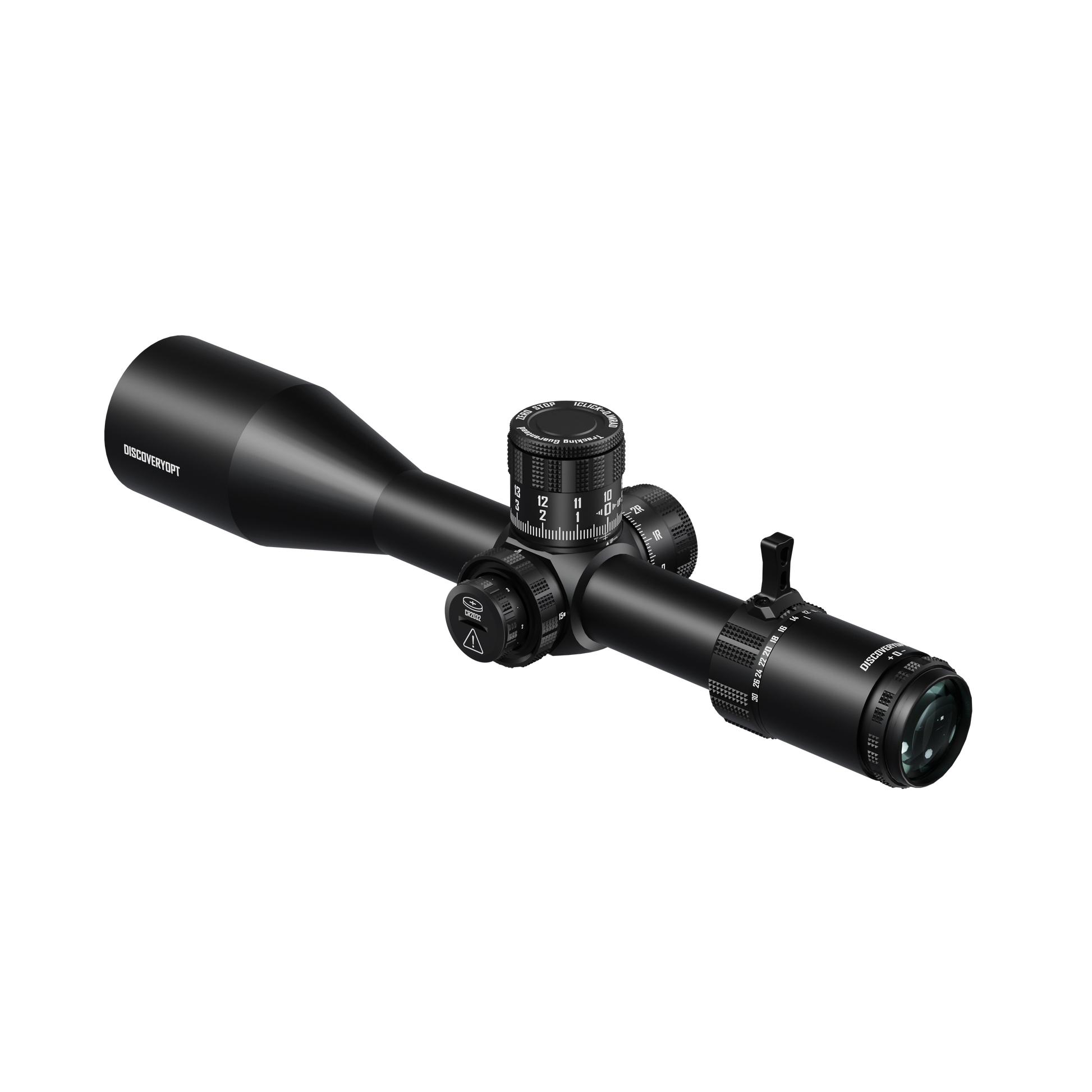

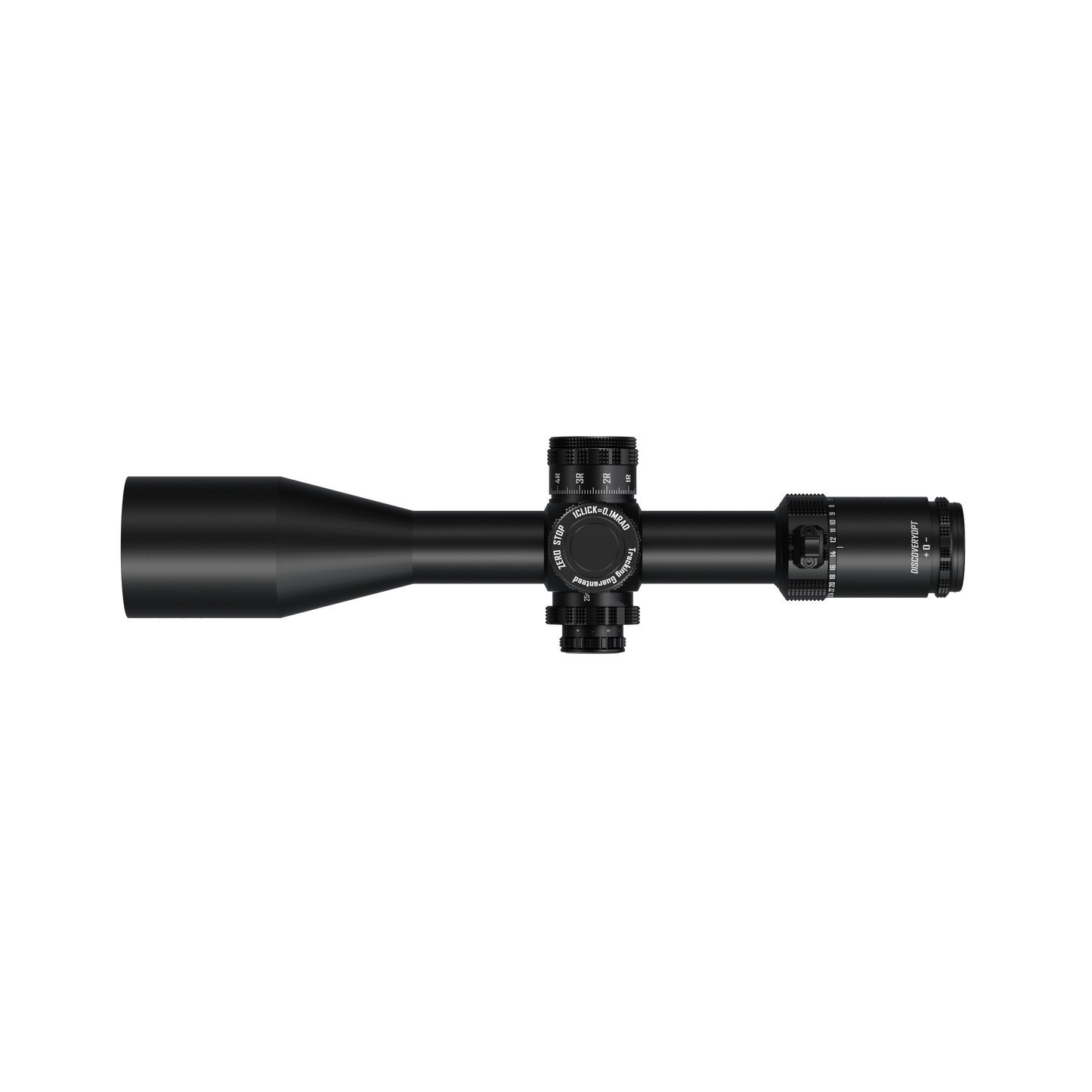

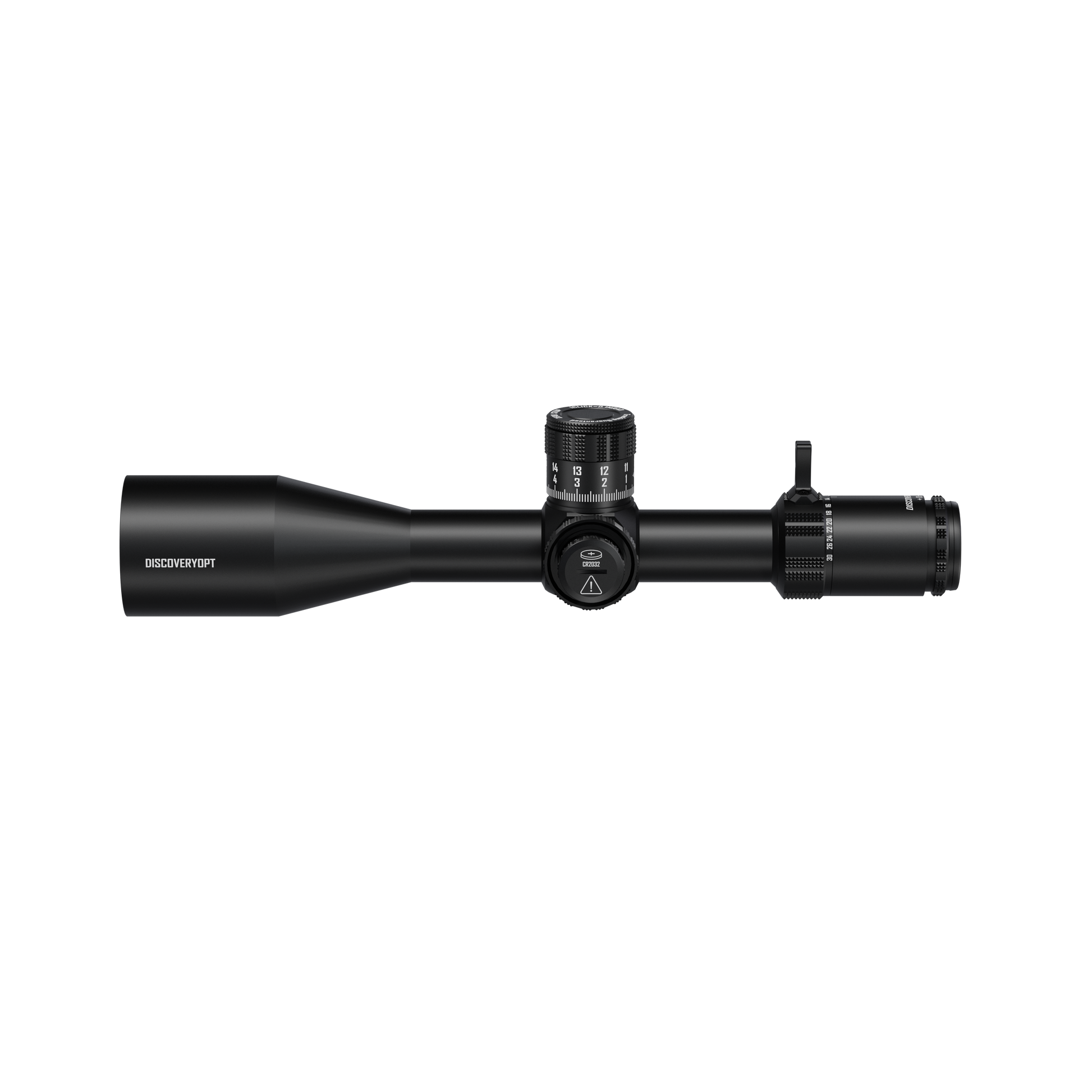

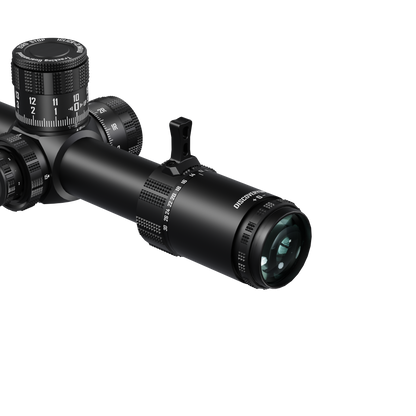

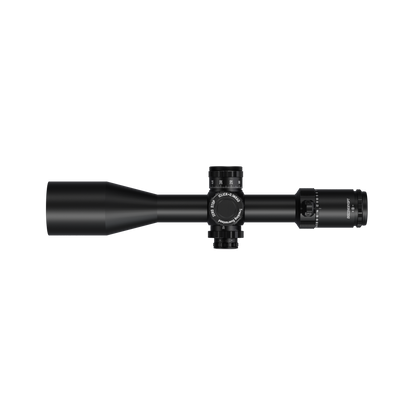

DISCOVERYOPT HD GEN III 5-30X56SFIR FFP-Z-MRAD Diameter:34MM Optics Scopes (FULLY TOOLLESS ZERO STOP)

DISCOVERYOPT HD GEN III 5-30X56SFIR FFP-Z-MRAD Diameter:34MM Optics Scopes (FULLY TOOLLESS ZERO STOP)

$349.00 USD
$349.00 USD
Save $-349 Ausverkauft
Versand wird beim Checkout berechnet
paypal visa master
// POLICY
Product Guarantee & Shipping Policy

🚀 Time: 10-15 business days for global destinations.

We have facilities in the USA, UK, EU, and China. Your order is dispatched from the facility nearest to you.

Lifetime Warranty: ALL riflescopes,rings,mounts.

2-Year Warranty: Thermal devices.

Return or exchange within 30 days of delivery if it meets our return criteria.

Vollständige Details anzeigen

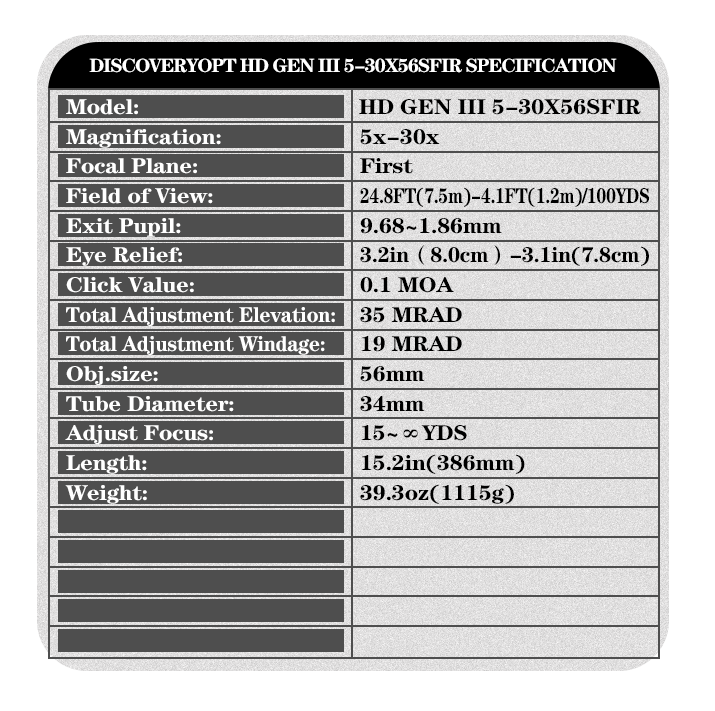

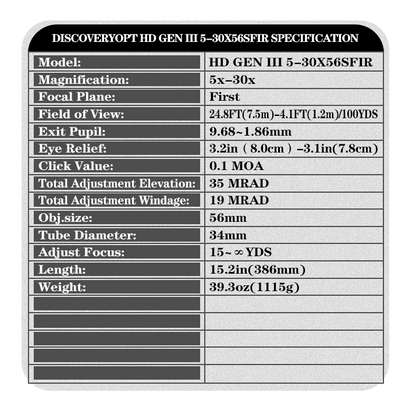

// TECHNICAL SPECIFICATIONS

HD GEN III 5-30X56SFIR

Model Name HD GEN III 5-30X56SFIR
Magnification 5-30X
Focal Plane FFP(First)
Outside Diameter Objective 56MM
Tube Diameter 34MM
Illumination Red, 6 Brightness Settings
Length 15.2in(386mm)
Weight 39.3oz(1115g)
Click Value 0.1 MRAD | 0.25 MOA

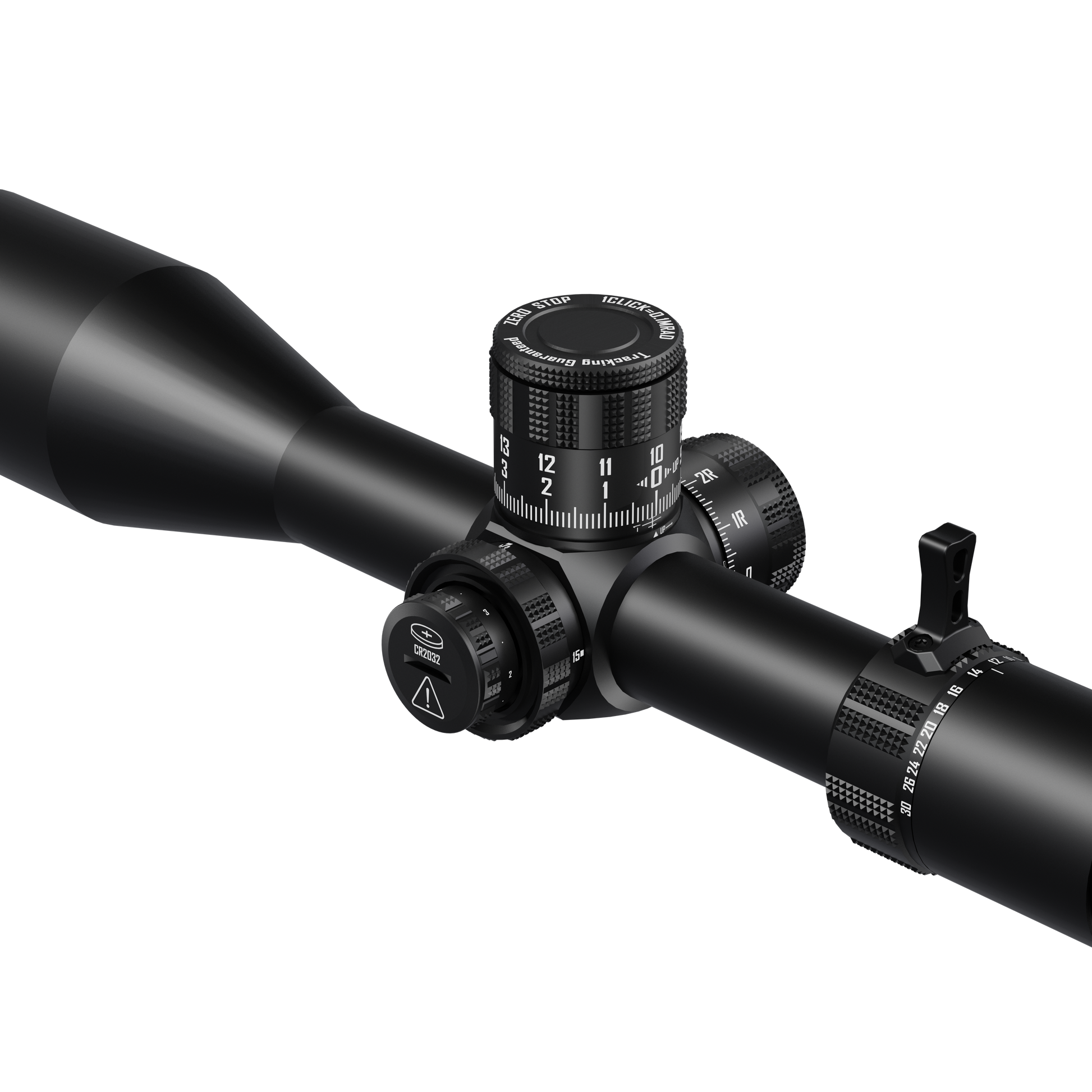

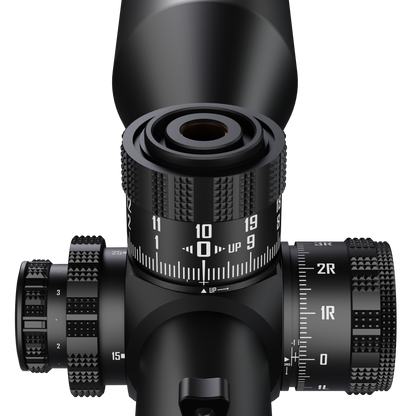

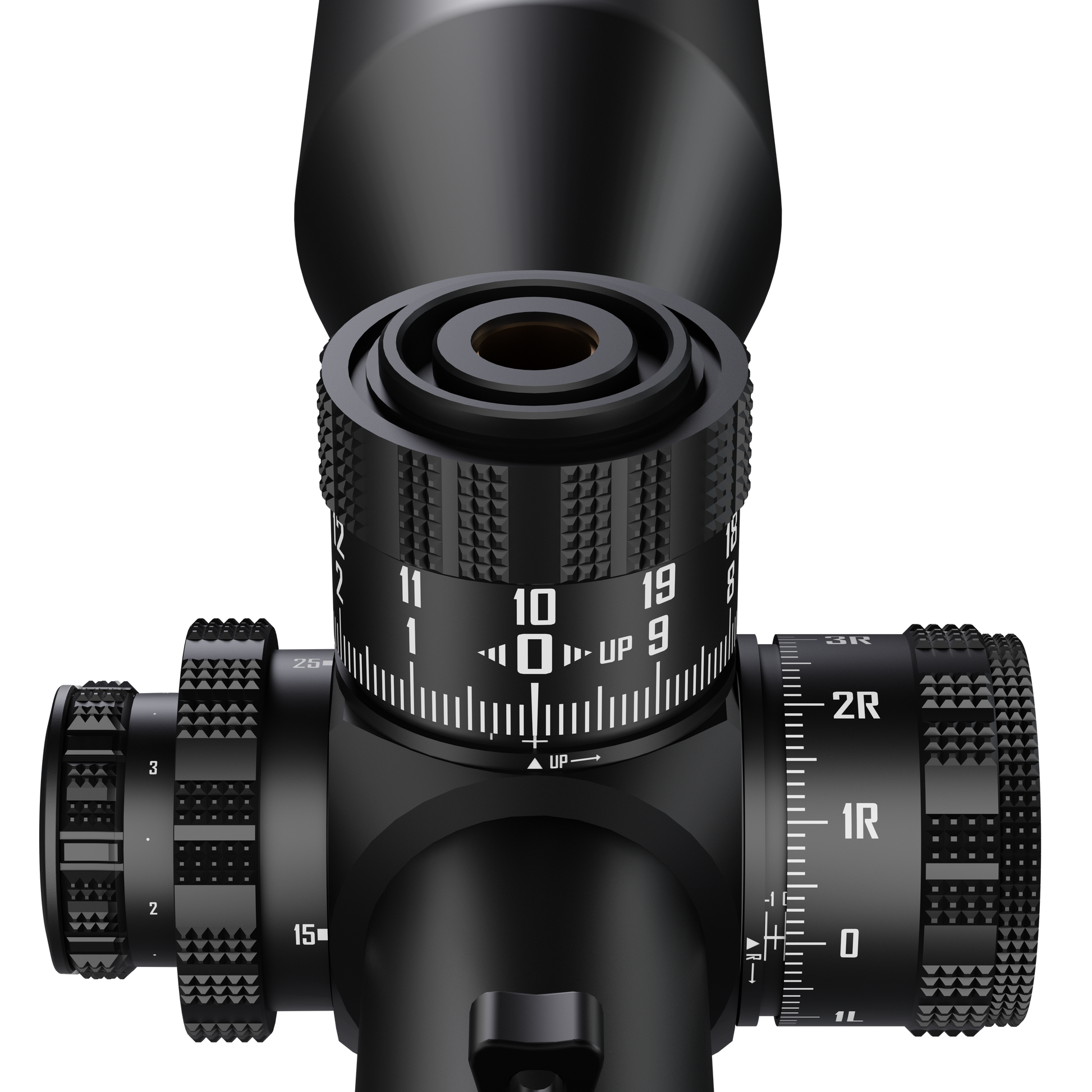

Turrets and Functions ZERO-STOP
Elevation Adj. Range 35 MRAD
Windage Adj. Range 19MRAD
FOV 25FT(7.6m)~4.0FT(1.2m)/100YDS
Exit Pupil 9.68-1.86
Eye Relief 3.2in ( 8.0cm ) -3.1in(7.8cm)
Parallax 15-∞ YDS
Recoil Rating .50 BMG
Fog Proof Nitrogen Purged
Waterproof IP67
Battery CR2032
// RETICLE SIMULATOR
Visual Field Preview
Drag the slider to experience how the reticle changes with magnification.
Magnification
5-30X
FFP(First)
ELEVATION ADJ. RANGE
35 MRAD
MRAD Reticle
FFP · MRAD
--×
-- × MAG
--× — --×
FFP · Reticle
Field of View
--°
Exit Pupil
--mm
Twilight Factor
--
FFP Front Focal Plane: Reticle scales with target — subtensions remain accurate at all magnifications.
Objective
56MM
15-∞ YDS
WINDAGE ADJ. RANGE
19MRAD
// MOUNTING ASSISTANT
Ring Height Calculator
Select Firearm Platform and Objective Diameter · The System Automatically Calculates Clearance and Recommends the Optimal Mount Height
// 01 · SELECT RIFLE PLATFORM
// 02 · SELECT OBJECTIVE DIAMETER
// 03 · CLEARANCE RESULT
Scope Center → Bore Axis (estimated)
-- "
Select platform and objective
--
// 04 · RING RECOMMENDATIONS
// INSTALLATION NOTES
01 Use a torque wrench. Recommended ring screw torque is 15–18 in-lbs to prevent tube damage.
02 Before zeroing, ensure all screws are tightened in a cross pattern for even clamping force.
03 34mm tube requires 34mm rings. Do not mix with 30mm ring models.
MOUNT CALC ONLINE · HD GEN III 5-30X56SFIR TUBE: 34mm · OBJ: 56mm DISCOVERYOPT © 2026

// VIDEO TUTORIALS

Videos

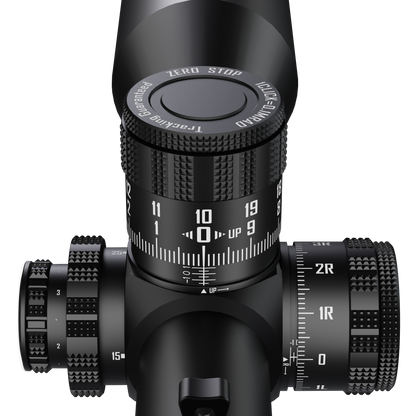

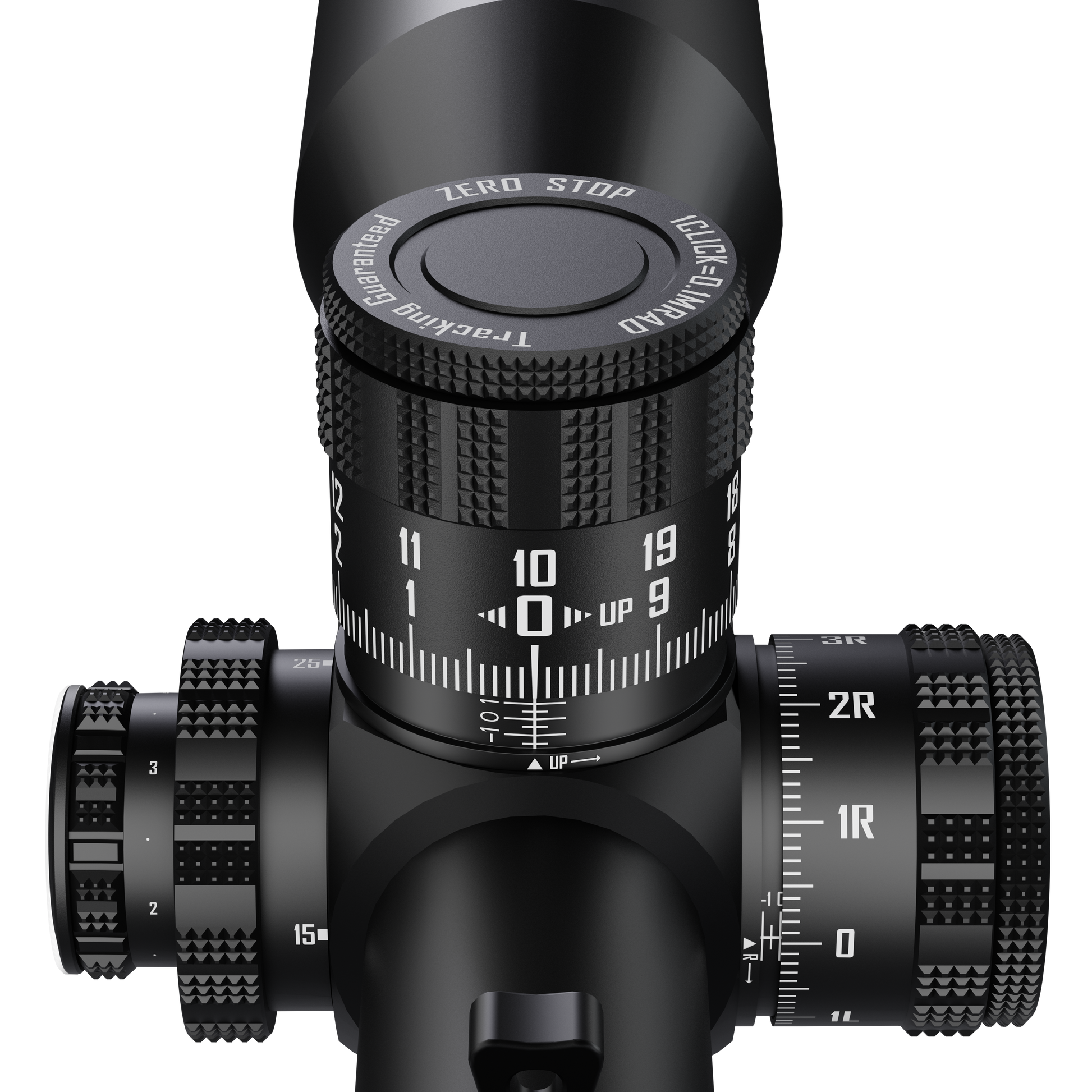

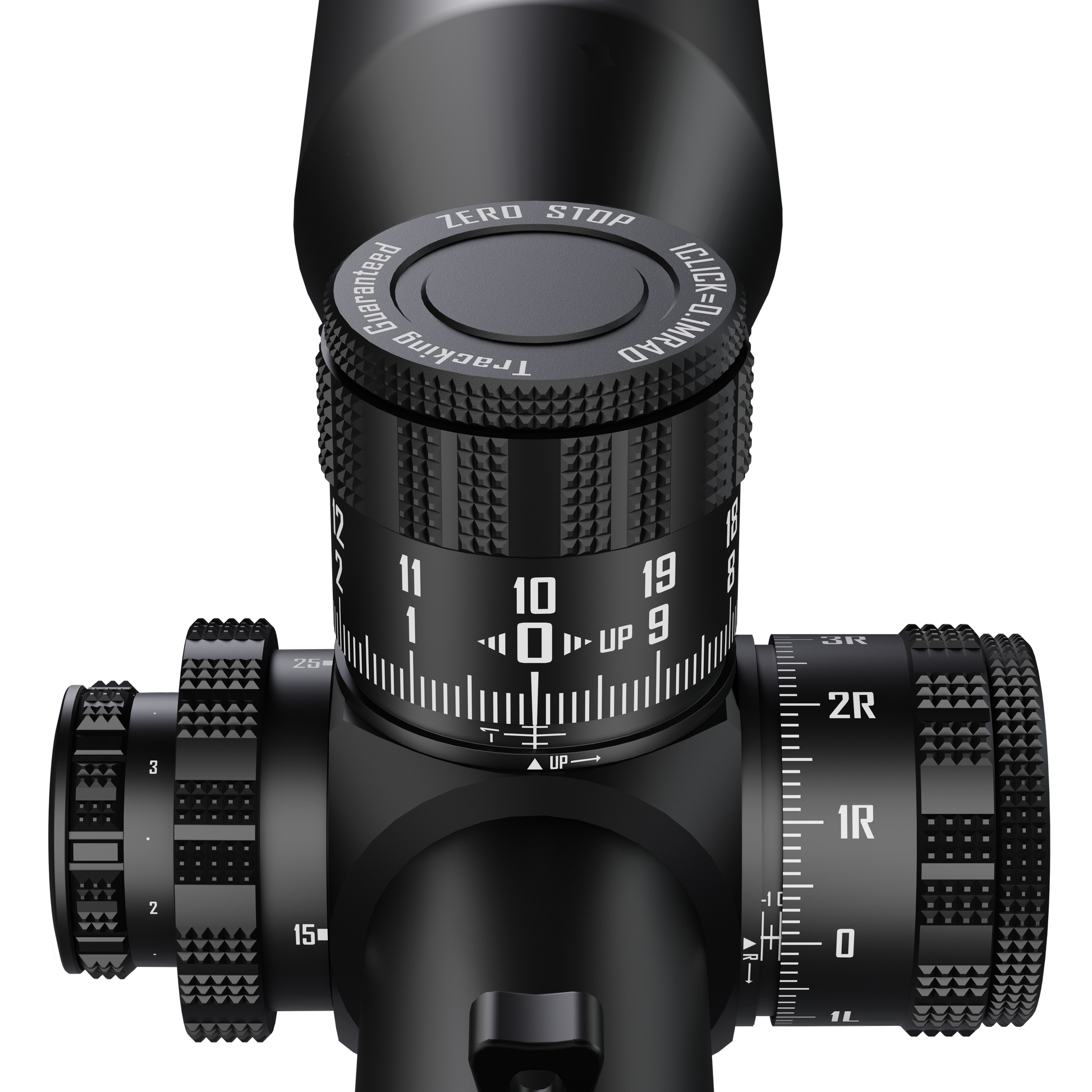

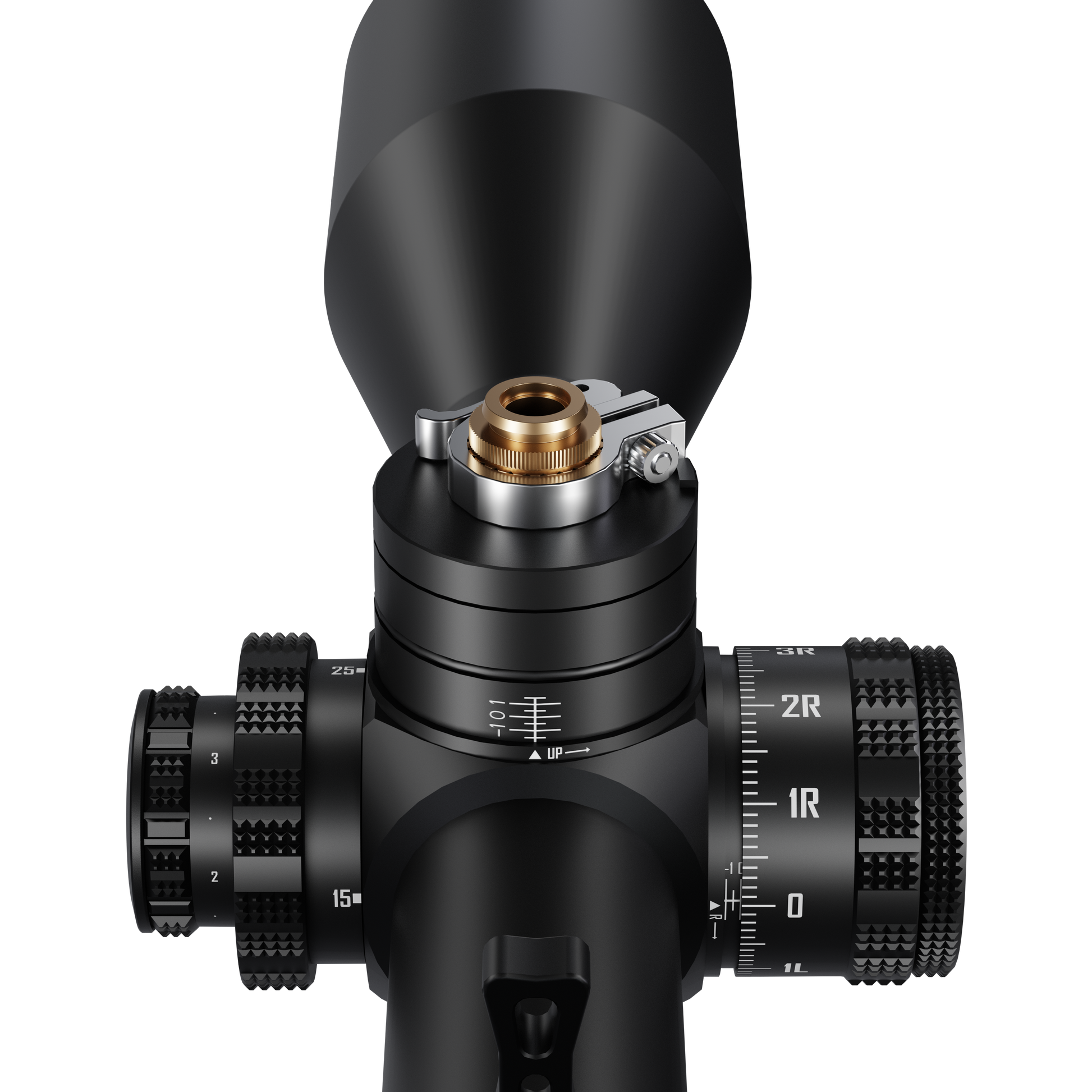

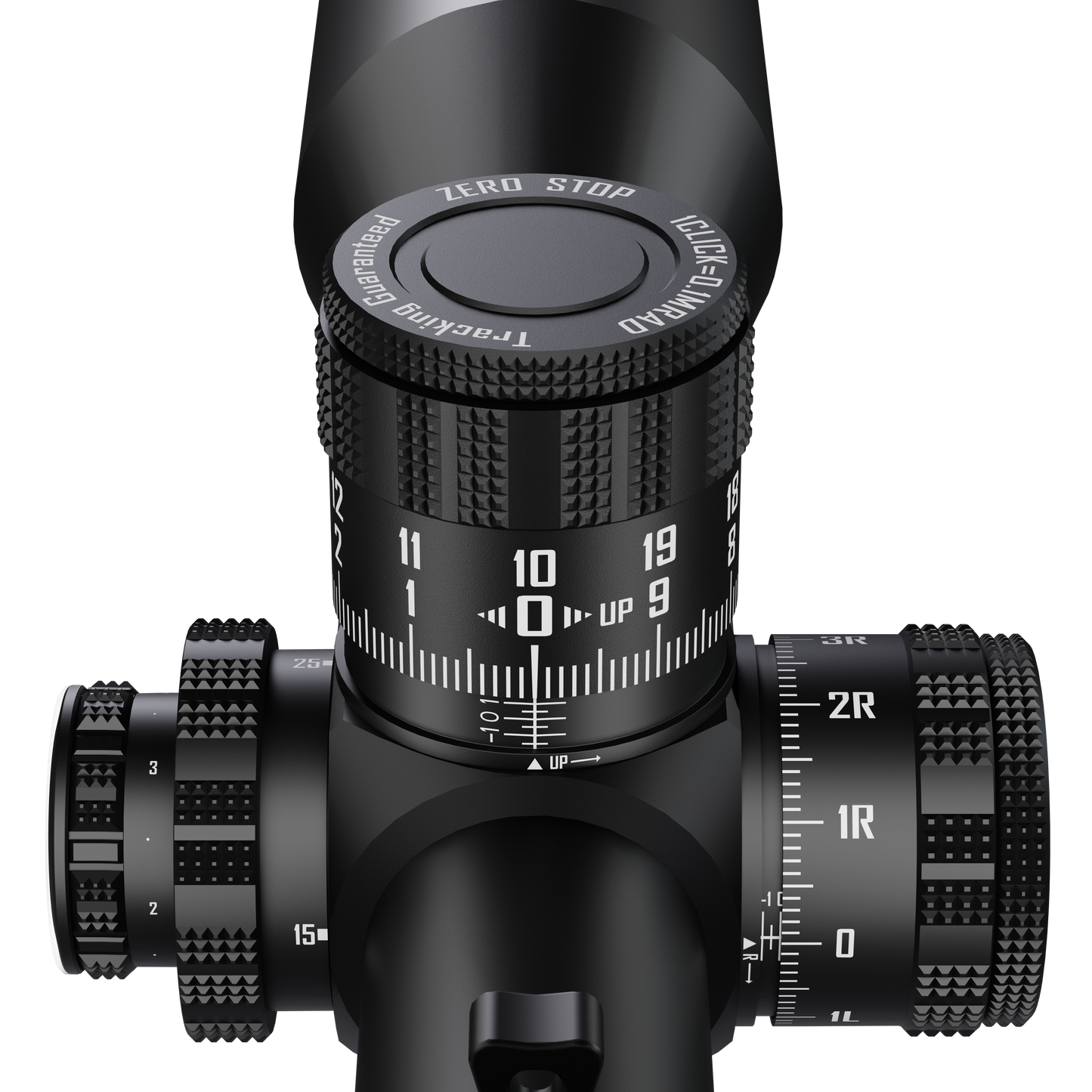

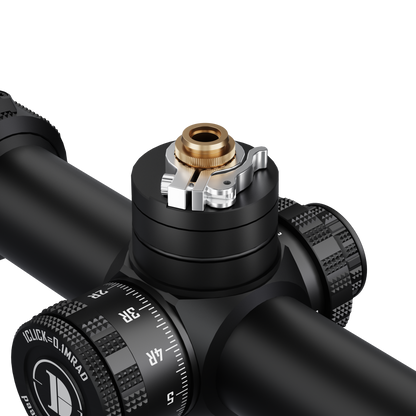

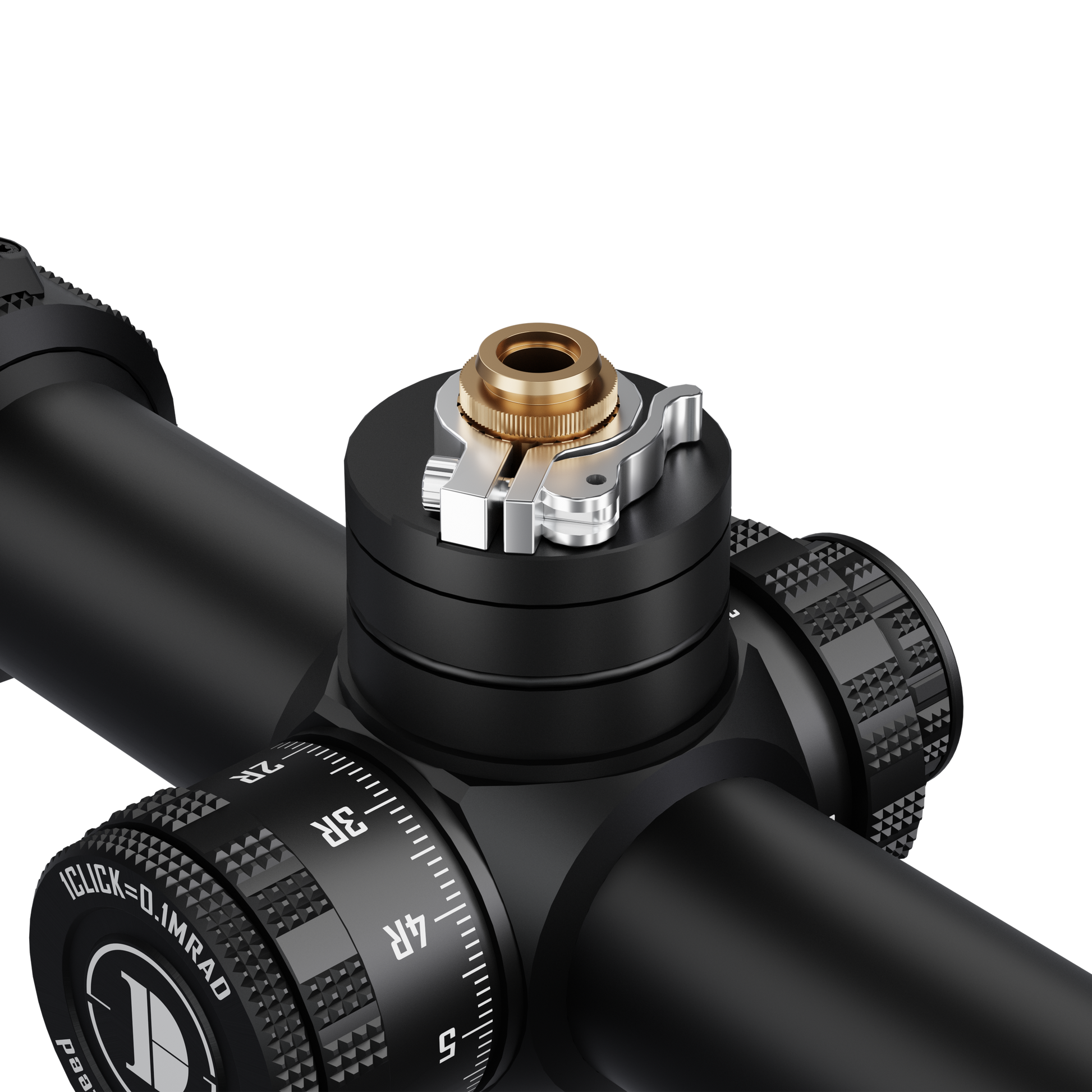

TOOLLESS ZERO STOP

No Allen key required. Quickly restore your established rifle zero.
TOOLLESS ZERO STOP
02

TOOLLESS ZERO STOP

No Allen key required. Quickly restore your established rifle zero.

// WHAT'S IN THE BOX

PACKAGE CONTENTS

  • Scope

    Scope

    ×1

  • Spec Card

    Spec Card

    ×2

  • User Manual

    User Manual

    ×1

  • Scope Sunshade

    Scope Sunshade

    ×1

  • Lens Cleaning Cloth

    Lens Cleaning Cloth

    ×1

  • Warranty Card &QC Card

    Warranty Card &QC Card

    ×1

  • Lens Cap

    Lens Cap

    ×1
