Laser-etched torque specification (18 in/lbs) eliminates guesswork and ensures absolute consistency with every installation.
// TECHNICAL SPECIFICATIONS
PRODUCT SPECS
Scope Tube Diameter
30MM / 34MM (Select Variant)
Rail Type
Picatinny Rail (MIL-STD-1913)
Mount Type
One-piece construction
Return-to-Zero Accuracy
0.01
Concentricity
≤0.01MM/M
MOA Cant
0
Shock Resistance
≥1000G
Locking Method
Three-screw locking
Main Material
6061-T6
Surface Finish
Hard Anodized Finish
Manufacturing Process
CNC One-piece Machined
Weight
// WHY DISCOVERYOPT
Engineered for Precision
Micron-Level Internal Lapping
Ordinary machining tolerances create stress points that can crush scope tubes or cause internal reticle shift under torque.
- 100% surface contact, uniform pressure distribution.
- Zero tube damage — no shims required.
// TECHNOLOGY
PRECISION ENGINEERED
Type III hard-anodized finish with an ultra-matte surface for superior scratch and corrosion resistance.
Mil-Spec Anodized Finish
100% surface contact for evenly distributed pressure.
Micron-level internal honing

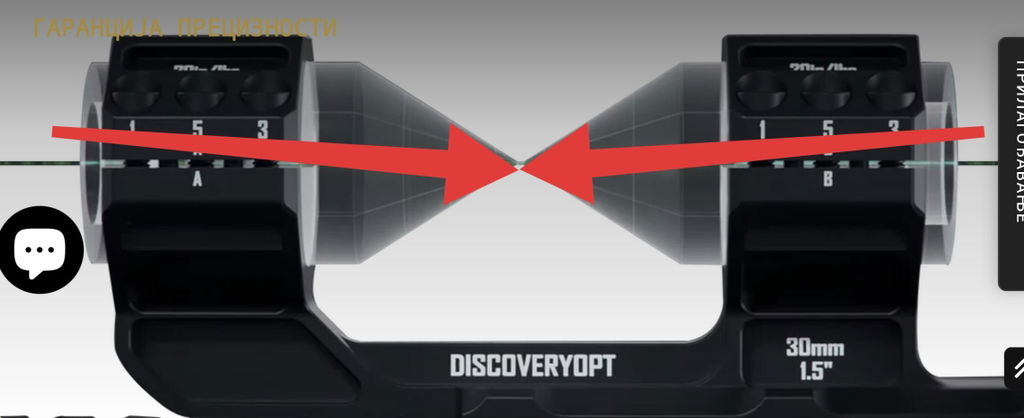

Ensure that the coaxiality error between the two internal axes is nearly zero.Ensure that there is no axial error when mounting the scope to achieve higher precision.
Precision Guarantee
📏 FITMENT GUIDE
Mount Fitment Assistant
×Recommended Center Height:
SHOP NOW
Note: Data is for reference only. Actual clearance may vary based on specific rifle setup.
// COMMON QUESTIONS
Got Questions?
We've gathered the most common questions from our customers. If you need anything else, our support team is always here.
We provide a Lifetime Full Coverage Warranty for selected products. If your product breaks or malfunctions, we will repair or replace it free of charge.
No registration or receipt is required. Your Discoveryopt product is automatically covered.
No, accessories are excluded. However, you can return them within 30 days of purchase for free.
Loss, theft, intentional damage, and cosmetic damage that does not affect performance.
Free repair or replacement if the product breaks or malfunctions. If it cannot be repaired, we will replace it with a new product of equal or better performance.
Simply contact our support team by email. No receipt is required.
In most cases, customers pay for shipping to our service center, and Discoveryopt covers the cost of returning the repaired or replaced product.
Processing times may vary, but we aim to handle all warranty claims as quickly as possible.
You can either find "Chat" in the lower left corner of the website to communicate directly with us or email us at 📧support@discoveryopt.com.
Our goal is to ensure you have a product that meets your needs. If you’re not satisfied, we will work with you until the issue is resolved.
Can't find what you're looking for? Our technical support team is ready to help.
Contact SupportCustomers praised this heavy-duty scope mount for its "very high quality" build and "super precise fabrication." Most found it robust with excellent fit on Picatinny rails. However, some noted fit issues with certain 34mm scopes requiring modification, and concerns about limited contact surfaces (15-20%). Weight was mentioned as a drawback. Overall, shoppers appreciated the value for price.
Fabrication (positive)Quality (positive)Price (positive)Delivery (positive)Mount (positive)
B
34MM-1.18IN
The piece on the 34mm tube and 1.18" center height doesn't fit because of the screw on the side of the scope... So I had to machine the piece. Except for that it does the job wonderfully.
So I hope you will redesign the product soon!
P
30MM-1.18IN
It would be great if the poor contact surface could be improved. I truly believe that a large part of the mount is designed and manufactured very well. The positive aspects are the fit on the Picatinny rail, the recoil lug, the six screws per ring, and the screw tightening sequence markings.

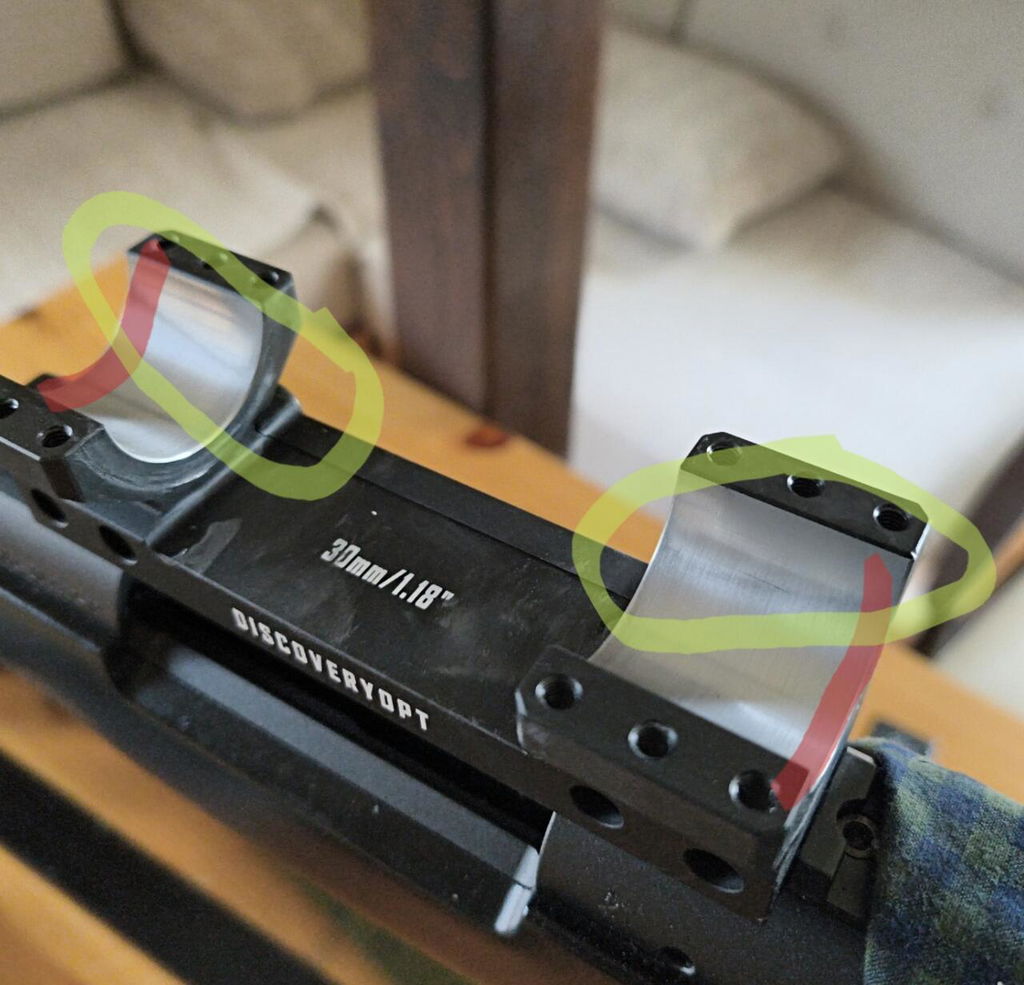

The only major issue is that the contact surfaces between the mount and the scope are very small, around 15–20%. After lapping, I managed to achieve about 65% contact.
I previously purchased one mount, wrote a review, and reported the issue to Discoveryopt. At that time, Discoveryopt told me that the information would be forwarded to production. I later purchased the same mount again, but it showed exactly the same issue.
If this problem were corrected, I would very likely purchase a third mount from Discoveryopt in the future.
A
30MM-1.5IN
No es perfecta por el pes, por lo demás es de lo mejor calidad precio que conozco
P
30MM-1.18IN
I have just received the Discovery Opt DGSM 30. The build quality is excellent; it feels very robust and promising in terms of holding the scope securely. Since the interior of the rings is not anodized, lapping is quite straightforward. On my specific unit, only a minimal amount of lapping might be needed, but even without it, I doubt the mount would leave any marks on the scope tube. The built-in bubble level isn't perfectly accurate, but that’s not a dealbreaker for me—it’s somewhat redundant anyway since it's barely visible during use.
S
30MM-1.5IN

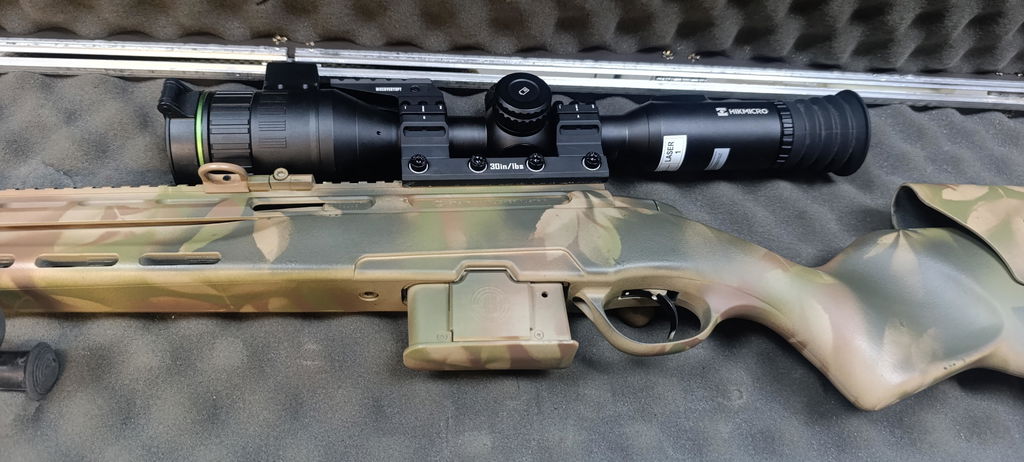

The first mount arrived and is installed. I have mounted a thermal scope so I can move between firearms.
Its excellent quality, so much so I have ordered a second mount for my day scope. My second mount is in your warehouse awaiting to be shipped.
J
34MM-1.18IN
Top Preis 🥇
M
34MM-1.18IN
Noch Nicht geliefert
m
Ottimo imballaggio e spedizione veloce
J
Seem very strong. I love good quality and these are definitely good quality
m
34MM-1.18IN
👍🏻
B
34MM-1.18IN
Very high quality easy fit
Does not fit the ed range with the screw on the bottom know allowance was made for the screw wich isn’t noted before you buy but with a grinder or a round file you can make a small groove to fit witch will probably void warranty shame but you can make it work with some common sense and a small groove
A
30MM-1.5IN
Livraison au top. Malheureusement, le monoblock n’est convient pas à ma lunette que j’ai également commandée chez vous, j’ai donc commandé et reçu l’autre monoblock.
A
34MM-1.5IN
Très bon matériel
O
34MM-1.5IN
Super precise fabrication
